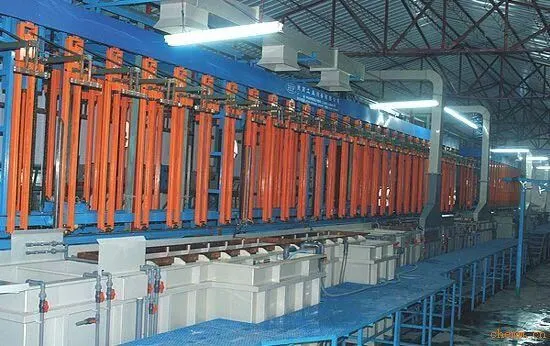

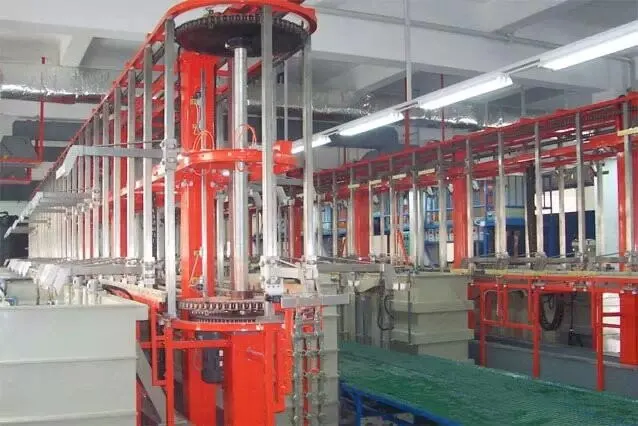

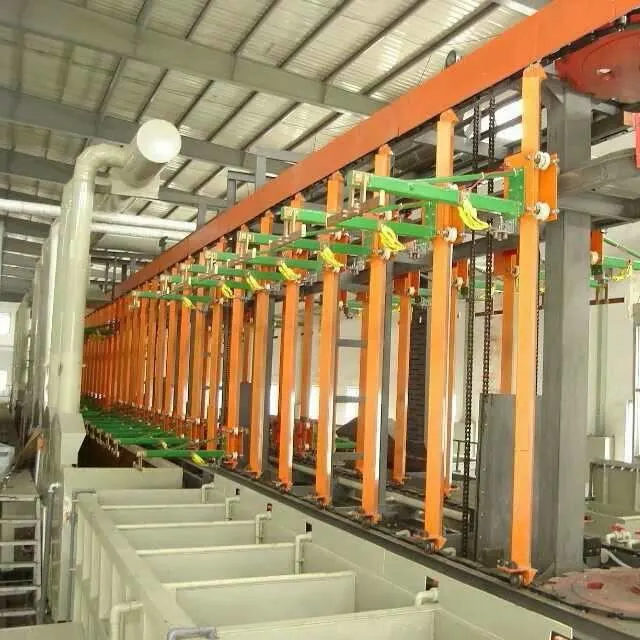

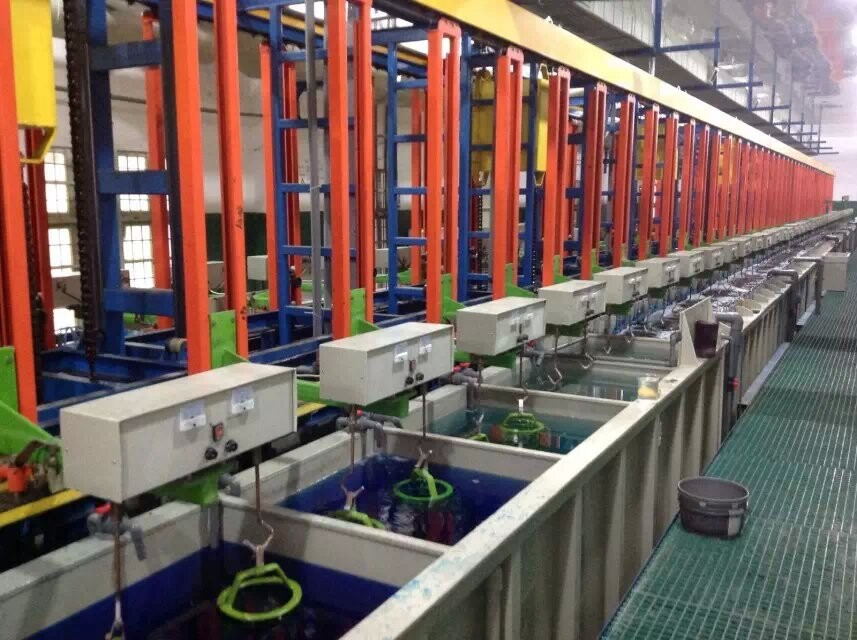

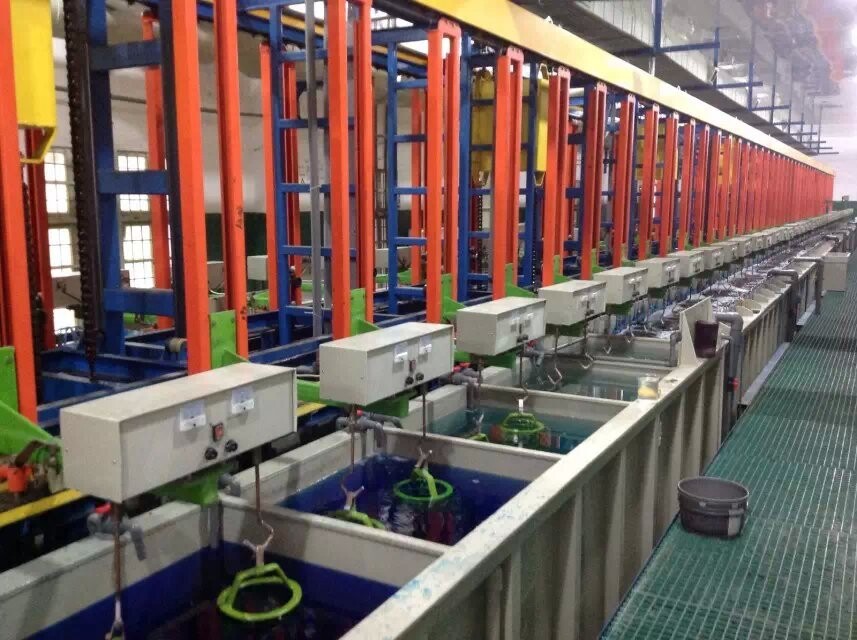

Automatic annular vertical Lift electroplating production line
1. Features:
This kind of electroplating production line has the advantages of short operation cycle, large batch production, adjustable operation speed of equipment, and buffer device to ensure stable clamping of plating parts.
PLC frequency converter and photoelectric switch control, accurate positioning.
High strength acid and alkali resistant belt is lifted to reduce oil pollution on production line;
2. Main parameters:
Output cycle: 25-35 seconds / hang
Maximum plating piece: 800 * 600mm
Working condition: it can work continuously for 24 hours
Maximum lifting weight: 30 kg / hang
Lifting height: 1.2-1.5m
Plating line of this type is with high production efficiency,
productive,and easy to maintain.
Stable structure,simple mechanical movements,lost maintenance cost.
Control and manage by HMI touch screen,parameters could be revised(need authority).
The main electric parts adopt brands for German and Japanese.
Takt time adjustable(20-60s/takt).
Lifting arm could hold racks or automatic rotary head,which
could make the parts rotate 360° within the tank.
Widely used for such as hardware industry,sanitary ware industry,automobile ABS industry,electronic industry and others etc.
Automatic control,and industrial control computer is optional,which can monitor real-time data and record.
| 1.Model No. | FYD-VR |
| 2.Raw Material | Polypropylene(PP),Stainless Steel, PVC, Copper, |
| 3.Features | 1.Anti-corrosion. 2.Protection and decoration. 3.Wear-resisting property. 4.Supply conductive and insulating coatings. 5.Process requirements |
| 4.Size | Customized, we make the machines based on the clients' project needs |
| 5.Application | Different kind of plating for metal and plastic products. |
| 6.Advantage | Flexible design, safe, stable and high strength |
| 7.Surrounding equipments | Rectifiers, Filters, Air blower, waste gas treatment system and so on |
| 8.Model | Automatic |
| 9.Warranty | 18 months (Considering the time for assemble and test. We extend the time from 12 month to 18 month. |
| 10.Packaging | Eco-friendly Wooden Crates |
| 11.Shipping | By sea or by air |
| 12.After-sale Service | 1 Year, if it's necessary our engineers will come directly |
| 13.Engineering Service | CAD or Sideworks(Computer - Aided Design) drawing, control panel layouts, full size plotting, fabrication drawing , equipment layout and design, piping schematics, complete factory design and layout, seismic calculations, permitting services |
| 14.Attention | We are customized machines and we often provide you with the EXW price. |
Packaging and shipping
Packaging details: wooden package
Transport: DHL, FEDEX, UPS, TNT,Air shipping, Boat shipping.
